URL input element

Allows user to enter a URL into a single-line field.


Type	`url_text_input`
Available in	Modals, Home tab
Works in blocks	Input block

Usage

Use the URL input inside an input block, in a modal or the Home tab. The value isn’t sent as it’s typed: when the person submits the modal, your app receives it in the view_submission payload under view.state.values[block_id][action_id]:

{ "company_site": { "website": { "type": "url_text_input", "value": "https://northwind.example" } } }

Before calling your app, Repzo checks that required inputs (input blocks without optional: true) are filled in and that the value is a valid http or https URL (“Enter a valid URL.”). Problems are shown under the field and your app isn’t called.

With dispatch_action: true on the input block, the element also sends a block_actions payload with the same value when the person presses Enter, or as they type, depending on dispatch_action_config.

Fields

Field	Type	Description	Required?
`type`	String	The type of element. In this case `type` is always `url_text_input`.	Required
`action_id`	String	An identifier for the input value when the parent view is submitted. You can use this when you receive a `view_submission` payload to identify the value of the input element (`view.state.values[block_id][action_id]`). Should be unique among all other `action_id`s in the containing block. Maximum length is 255 characters. If you leave it out, Repzo generates one.	Optional
`initial_value`	String	The initial value in the URL input when it is loaded.	Optional
`dispatch_action_config`	Dispatch action configuration object	A dispatch configuration object that determines when during text input the element returns a `block_actions` payload. Only used when the parent input block sets `dispatch_action: true`. Defaults to `on_enter_pressed`.	Optional
`focus_on_load`	Boolean	Indicates whether the element will be set to auto focus within the view. Only one element can be set to `true`. Defaults to `false`.	Optional
`placeholder`	Text object	A `plain_text` only text object that defines the placeholder text shown in the URL input. Maximum length for the `text` in this field is 150 characters.	Optional

Examples

A URL input in a form

This example belongs in a modal view — the screenshot shows it in a modal.

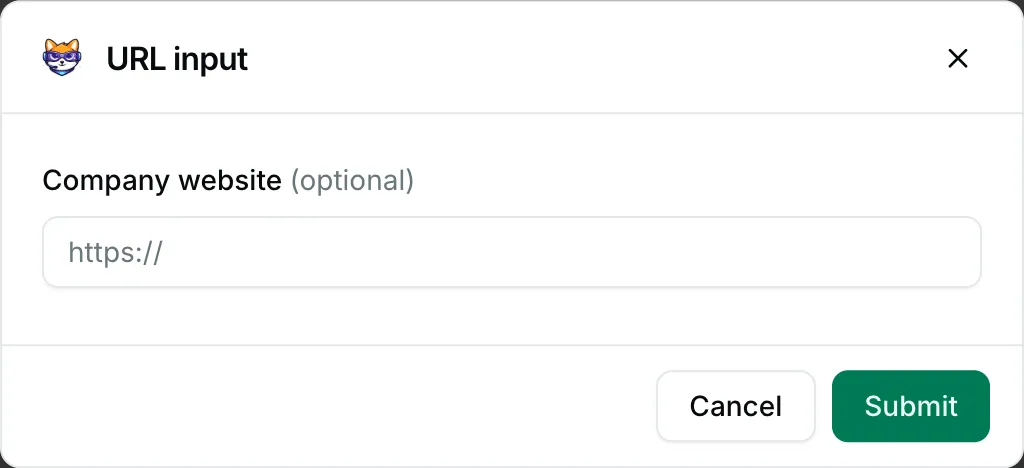

A URL input in a form — how it renders in Repzo Chat

{
  "blocks": [
    {
      "type": "input",
      "block_id": "company_site",
      "optional": true,
      "label": {
        "type": "plain_text",
        "text": "Company website"
      },
      "element": {
        "type": "url_text_input",
        "action_id": "website",
        "placeholder": {
          "type": "plain_text",
          "text": "https://"
        }
      }
    }
  ]
}
