Rich text input element

Allows users to enter formatted text in a WYSIWYG editor, much like the Repzo Chat composer.

Type	rich_text_input
Available in	Modals, Home tab
Works in blocks	Input block

Usage

Use the rich text input inside an input block. When the person submits the modal, your app receives the text as a rich text block under view.state.values[block_id][action_id]:

{
  "type": "rich_text_input",
  "rich_text_value": {
    "type": "rich_text",
    "elements": [
      { "type": "rich_text_section", "elements": [{ "type": "text", "text": "Next steps", "style": { "bold": true } }] },
      { "type": "rich_text_list", "style": "bullet", "elements": [
        { "type": "rich_text_section", "elements": [{ "type": "text", "text": "Send the pilot agreement" }] }
      ] }
    ]
  }
}

A required rich text input must contain some non-blank text. With dispatch_action: true on the input block, the element also sends a block_actions payload with the same rich_text_value on ⌘/Ctrl+Enter, or as the person types, depending on dispatch_action_config.

The web editor offers bold, italic, strikethrough, inline code, links, bulleted and numbered lists, quotes and code blocks.

Fields

Field	Type	Description	Required?
type	String	The type of element. In this case type is always rich_text_input.	Required
action_id	String	An identifier for the input value when the parent view is submitted. You can use this when you receive a view_submission payload to identify the value of the input element (view.state.values[block_id][action_id]). Should be unique among all other action_ids in the containing block. Maximum length is 255 characters. If you leave it out, Repzo generates one.	Optional
initial_value	Rich text block	The initial value in the rich text input when it is loaded.	Optional
dispatch_action_config	Dispatch action configuration object	A dispatch configuration object that determines when during text input the element returns a block_actions payload. Only used when the parent input block sets dispatch_action: true. Defaults to on_enter_pressed.	Optional
focus_on_load	Boolean	Indicates whether the element will be set to auto focus within the view. Only one element can be set to true. Defaults to false.	Optional
placeholder	Text object	A plain_text only text object that defines the placeholder text shown in the rich text input. Maximum length for the text in this field is 150 characters.	Optional

How Repzo Chat differs from Slack

• In the mobile app the field is a plain multi-line text box. The value is still a rich_text block: paragraphs become sections and lines starting with - or 1. become lists, with no other formatting.
• Mentions and emoji pickers aren’t available in the editor.
• min_lines and max_lines aren’t supported, and the element can’t be used in table blocks.
• Works in the Home tab as well as in modals.
• In a message, an input block is shown as a disabled stand-in and the API returns a warning instead of refusing the message.
• focus_on_load is applied on the web; the mobile app ignores it.

Examples

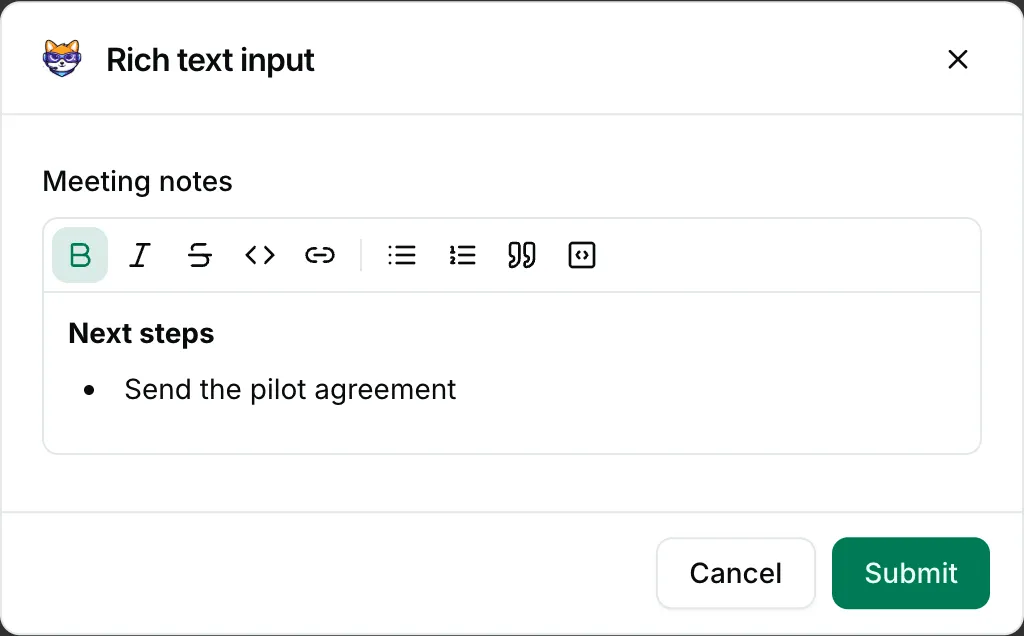

A rich text input in a form

This example belongs in a modal view — the screenshot shows it in a modal.

{
  "blocks": [
    {
      "type": "input",
      "block_id": "meeting_notes",
      "label": {
        "type": "plain_text",
        "text": "Meeting notes"
      },
      "element": {
        "type": "rich_text_input",
        "action_id": "notes",
        "placeholder": {
          "type": "plain_text",
          "text": "Decisions, objections, next steps…"
        },
        "initial_value": {
          "type": "rich_text",
          "elements": [
            {
              "type": "rich_text_section",
              "elements": [
                {
                  "type": "text",
                  "text": "Next steps",
                  "style": {
                    "bold": true
                  }
                }
              ]
            },
            {
              "type": "rich_text_list",
              "style": "bullet",
              "elements": [
                {
                  "type": "rich_text_section",
                  "elements": [
                    {
                      "type": "text",
                      "text": "Send the pilot agreement"
                    }
                  ]
                }
              ]
            }
          ]
        }
      }
    }
  ]
}
