Rich text block

Displays formatted, structured text — styled runs, lists, quotes, code — built from rich text elements.


Type	`rich_text`
Available in	Messages, Modals, Home tab
Compatible block elements	Rich text section element, Rich text list element, Rich text preformatted element, Rich text quote element

Usage

This is the format chat messages are written in, and what a rich text input returns. Elements nest: a list holds sections, and a section holds text, links, emoji, mentions and dates.

Fields

Field	Type	Description	Required?
`type`	String	The type of block. For a rich text block, `type` is always `rich_text`.	Required
`elements`	Object[]	An array of `rich_text_section`, `rich_text_list`, `rich_text_preformatted` and `rich_text_quote` elements.	Required
`block_id`	String	A unique identifier for the block. Maximum length is 255 characters. It must be unique within the message or view — a duplicate is replaced and reported as a warning.	Optional

Examples

Styled text, a list and a link

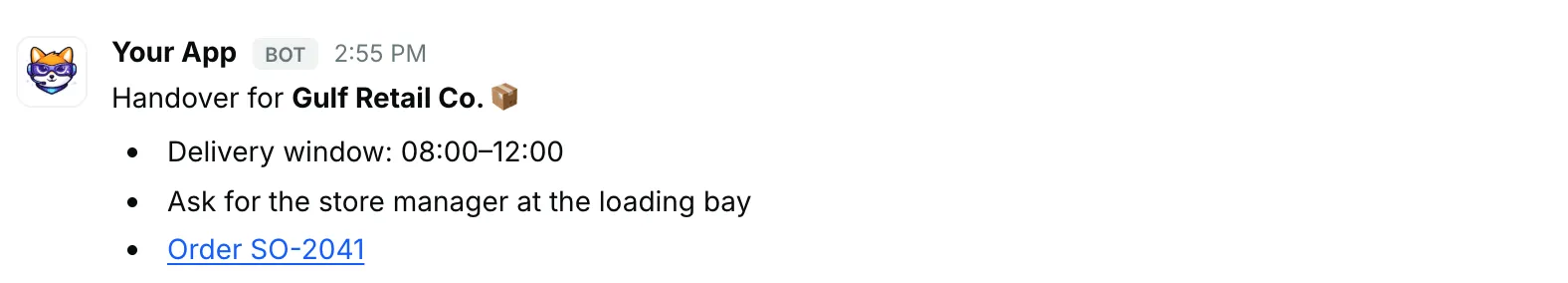

Styled text, a list and a link — how it renders in Repzo Chat

{
  "blocks": [
    {
      "type": "rich_text",
      "elements": [
        {
          "type": "rich_text_section",
          "elements": [
            {
              "type": "text",
              "text": "Handover for "
            },
            {
              "type": "text",
              "text": "Gulf Retail Co. ",
              "style": {
                "bold": true
              }
            },
            {
              "type": "emoji",
              "name": "package"
            }
          ]
        },
        {
          "type": "rich_text_list",
          "style": "bullet",
          "elements": [
            {
              "type": "rich_text_section",
              "elements": [
                {
                  "type": "text",
                  "text": "Delivery window: 08:00–12:00"
                }
              ]
            },
            {
              "type": "rich_text_section",
              "elements": [
                {
                  "type": "text",
                  "text": "Ask for the store manager at the loading bay"
                }
              ]
            },
            {
              "type": "rich_text_section",
              "elements": [
                {
                  "type": "link",
                  "url": "https://example.com/orders/SO-2041",
                  "text": "Order SO-2041"
                }
              ]
            }
          ]
        }
      ]
    }
  ]
}

A quote and a code block

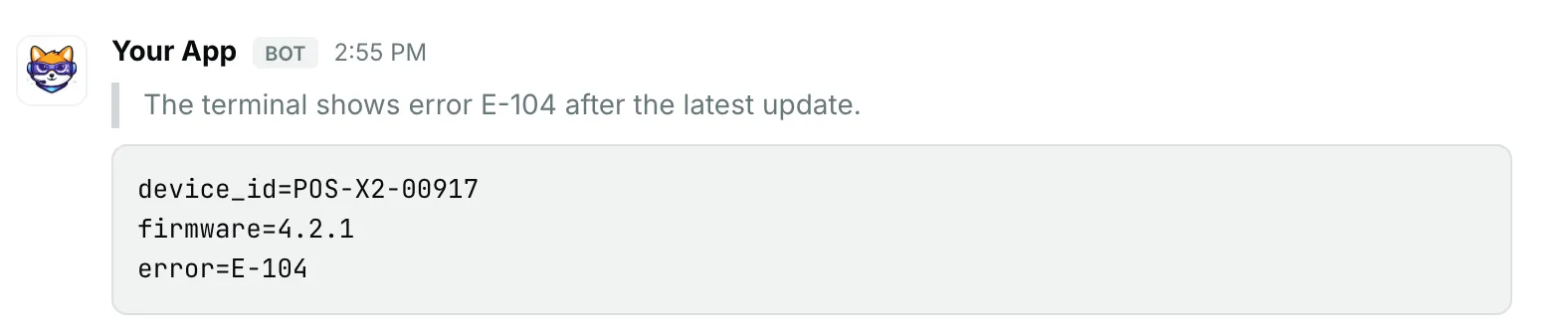

A quote and a code block — how it renders in Repzo Chat

{
  "blocks": [
    {
      "type": "rich_text",
      "elements": [
        {
          "type": "rich_text_quote",
          "elements": [
            {
              "type": "text",
              "text": "The terminal shows error E-104 after the latest update."
            }
          ]
        },
        {
          "type": "rich_text_preformatted",
          "elements": [
            {
              "type": "text",
              "text": "device_id=POS-X2-00917\nfirmware=4.2.1\nerror=E-104"
            }
          ]
        }
      ]
    }
  ]
}
